In the ever-evolving world of PC hardware, Jonsbo has introduced a groundbreaking all-in-one (AIO) liquid cooling solution that combines high performance with a unique aesthetic appeal: the Jonsbo TF3-360SCB. This innovative cooler stands out not only for its thermal efficiency but also for its integration of four LCD displays, transforming the cooling system into an informational and visual centerpiece for PC builds. Here, we explore the features, performance, and customization options of the TF3-360SCB, a cooler that pushes the boundaries of both function and style.

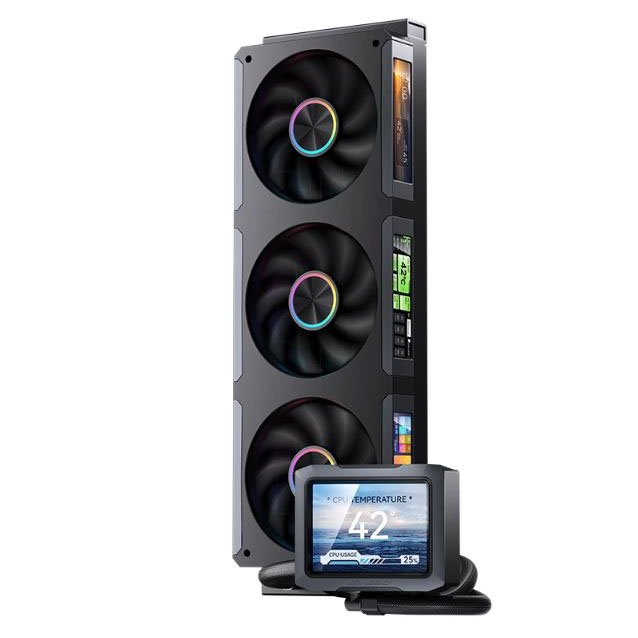

Traditional AIO liquid coolers focus primarily on cooling efficiency, featuring a pump, radiator, fans, and tubing. The Jonsbo TF3-360SCB redefines this formula by incorporating four LCD displays directly into the cooling loop. The pump block houses a 3.5-inch display with a resolution of 640 × 480 pixels, while each of the three 120 mm cooling fans is equipped with a 3.38-inch display at 640 × 180 pixels. These screens, operating at 350 nits brightness, ensure clear visibility inside most PC cases without being overly intrusive.
Source : Jonsbo
This multi-display setup is a game-changer, offering both practical and aesthetic benefits. Through Jonsbo’s proprietary software, users can monitor real-time system metrics such as CPU temperatures, fan speeds, and clock rates. Additionally, the displays support standard image formats (JPG), animated GIFs, and even short MP4 videos, allowing users to personalize their builds with custom visuals or looping animations. This feature transforms the TF3-360SCB into a dynamic component that enhances the visual appeal of any PC setup.
The cooler’s three 120 mm fans operate within a speed range of 700 to 2,400 RPM, providing an airflow range of 21.46 to 62.4 CFM (36.46 to 106.02 m³/h). The noise level is capped at a maximum of 37.3 dB(A) for the fans, while the pump, running at 2,500 RPM, operates below 30 dB(A), ensuring a balance between performance and quiet operation. These specifications make the TF3-360SCB a viable option for high-performance systems, including gaming PCs and workstations.
Source : Jonsbo

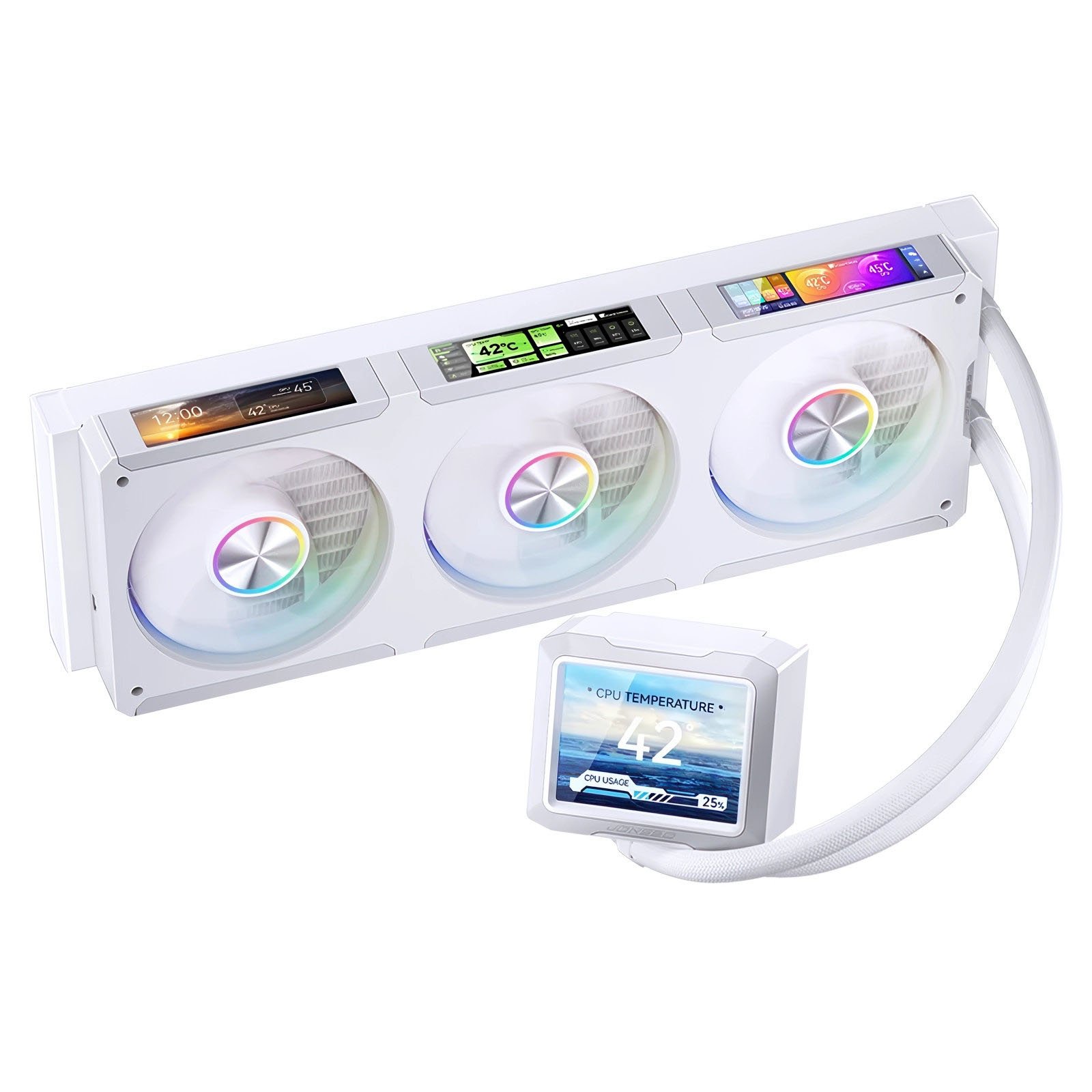

Available in two color variants—matte black (TF3-360SCB) and gloss white (TF3-360SCW)—the TF3-360SCB offers flexibility to match various PC build themes, from sleek stealth designs to vibrant gaming rigs. The ability to display custom animations or branded video segments on the LCD screens adds a new dimension to PC personalization, allowing builders to showcase their creativity. Unlike traditional AIOs that rely solely on RGB lighting for aesthetics, the TF3-360SCB’s screens provide a functional and visually engaging alternative.

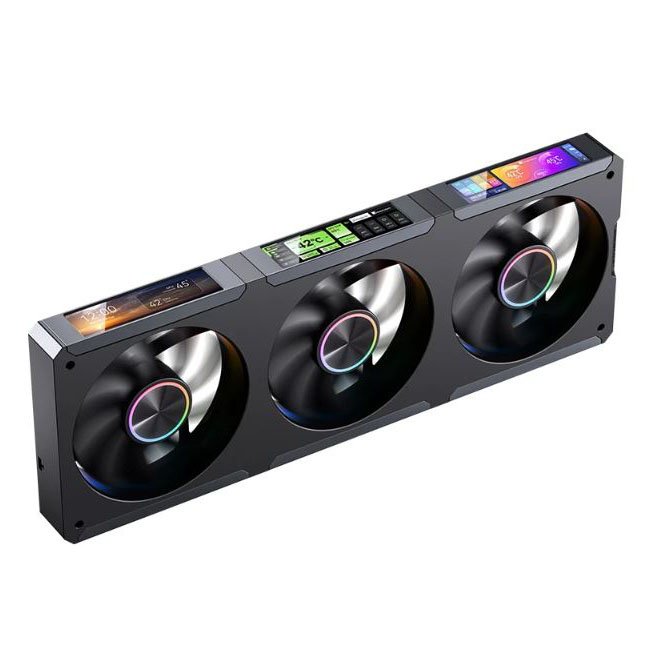

The integration of displays directly into the fan frames is particularly noteworthy. This design eliminates the need for additional motherboard headers or external LCD mounts, streamlining the build process and reducing cable clutter. The result is a clean, efficient setup that combines monitoring capabilities with aesthetic flair.
Source : Jonsbo
While many AIO coolers now feature a single display on the pump block, Jonsbo’s decision to equip each fan with its own screen sets the TF3-360SCB apart. This “mini Broadway” approach, as described by Overclocking.com, maximizes display real estate for system monitoring and creative expression. Whether you’re a hardware enthusiast tracking performance metrics or a builder aiming to create a visually stunning PC, the TF3-360SCB delivers on both fronts.
However, potential buyers should note that pricing and availability details for the TF3-360SCB have not yet been widely announced. Given its advanced features, it’s likely to command a premium over standard AIO coolers, but its unique display integration may justify the cost for enthusiasts seeking a standout component.
Source : Jonsbo
